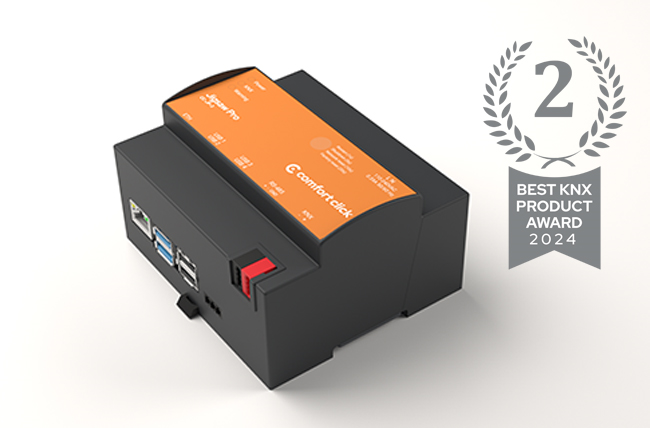

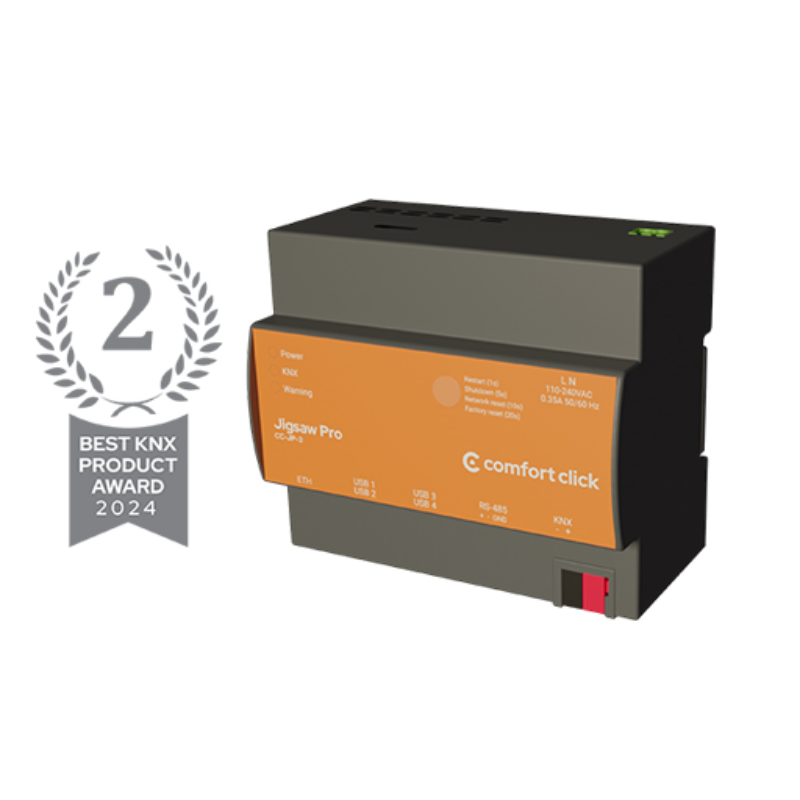

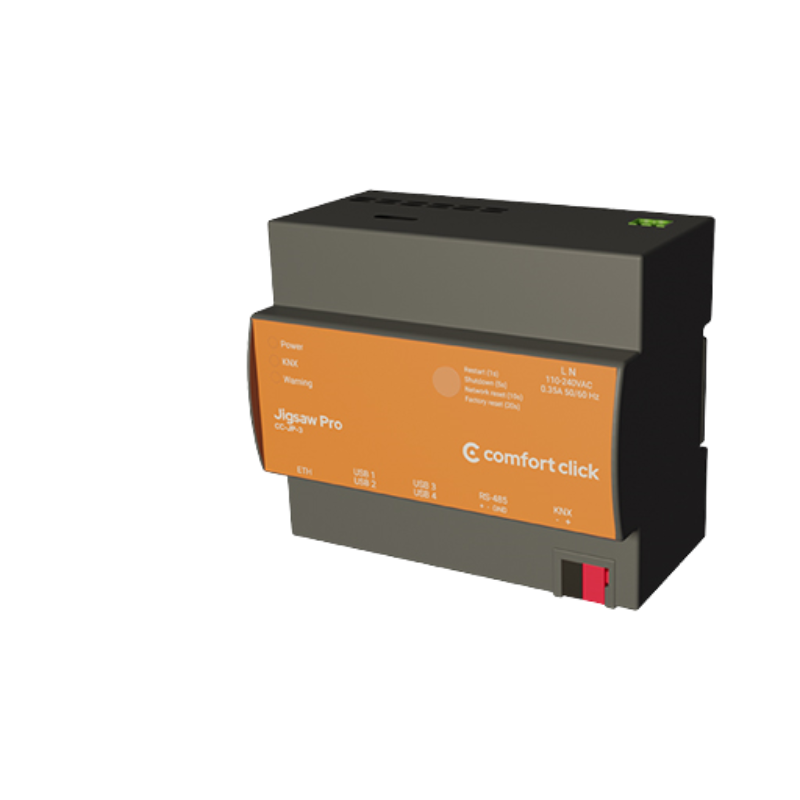

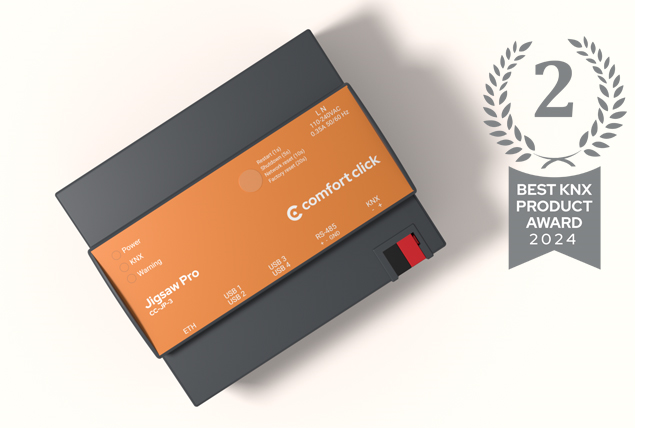

Jigsaw Pro has a more powerful hardware than regular Jigsaw which makes it suitable for larger residential projects. In addition to KNX it also has Modbus / BACnet interface integrated.
Catégories :
1HOME & COMFORTCLICK
| Name | Jigsaw Pro |
| Model | CC-JP-3 |
| Description | Building automation server |
| Mounting | DIN rail, 6U |
| Dimensions | 107 mm x 91 mm x 62 mm |
| Power Supply | 100-240 V, 50/60 Hz |
| Power Consumption | Approx. 5 -10 W |
| OS | Embedded Linux |
| CPU | Quad-core 1,5 GHz ARM 64-bit |
| Memory | 4 GB |
| Storage | MicroSD card 32GB, Industrial |
| Connectors | 1x KNX, 1x RS485, 2x USB 2.0, 2x USB 3.0, 1x Gigabit Ethernet port |
| KNX | Integrated KNX IP Secure Interface |
| Temperature | Operation: -5°C - 45°C |
| Storage | Storage / transport: -25 °C – +70 °C |
| Protection rating | IP20 |
| Software | bOS - Building Operating System |
| License | bOS Pro License with 3 Users |
| Devices | KNX, Z-Wave, Modbus, BACnet, Alexa, Google Home, IP cameras, Sonos, Hue, TCP/IP devices, DSC, Satel, Paradox, Kodi, Global Caché… |
| Logic | Program, Schedule, Time, Scene, Regulator, Logging, Messaging, Calculations, Logic Gates… |
